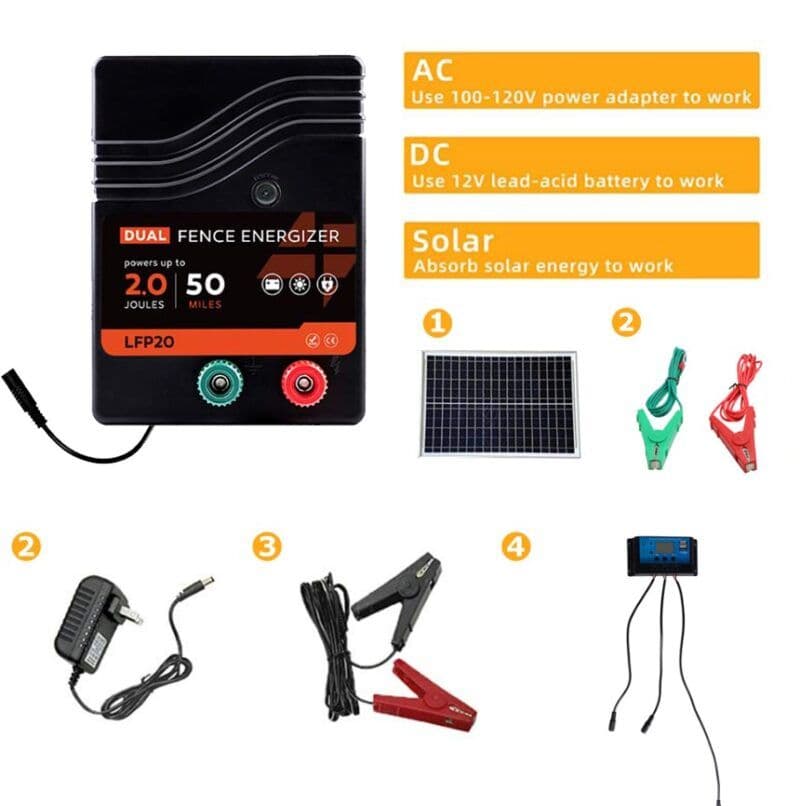

Any power source. Anywhere. Solar compatible.

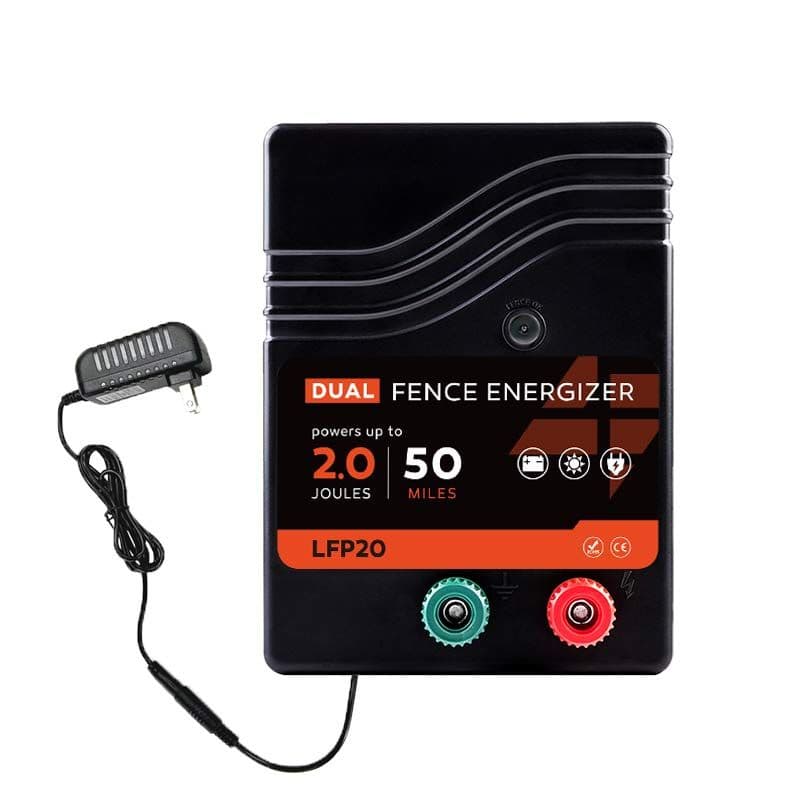

Can be used in 110V-240V, battery or solar power applications, providing convenient, versatile livestock control.

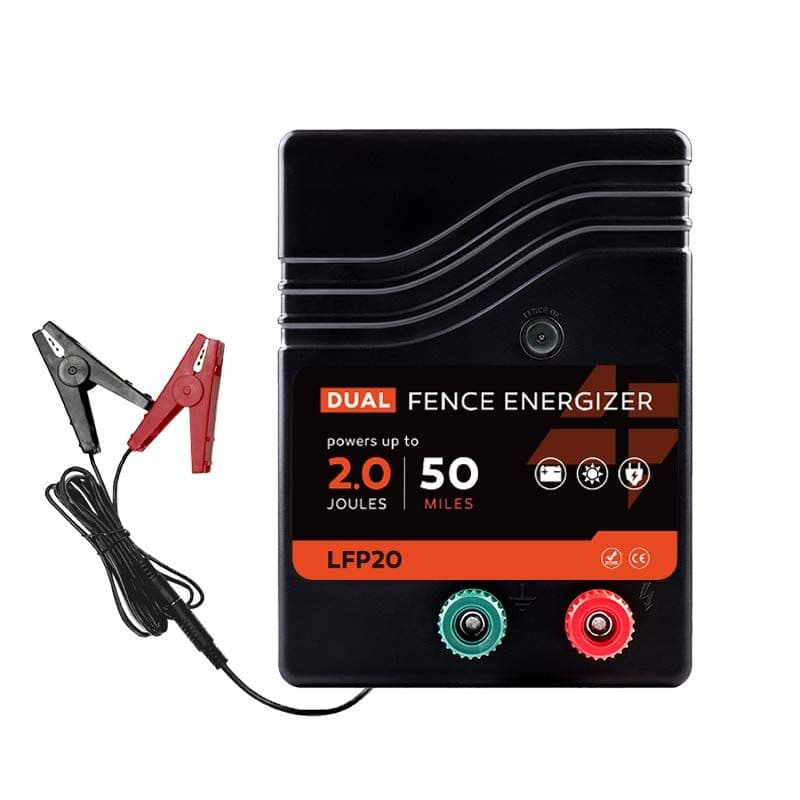

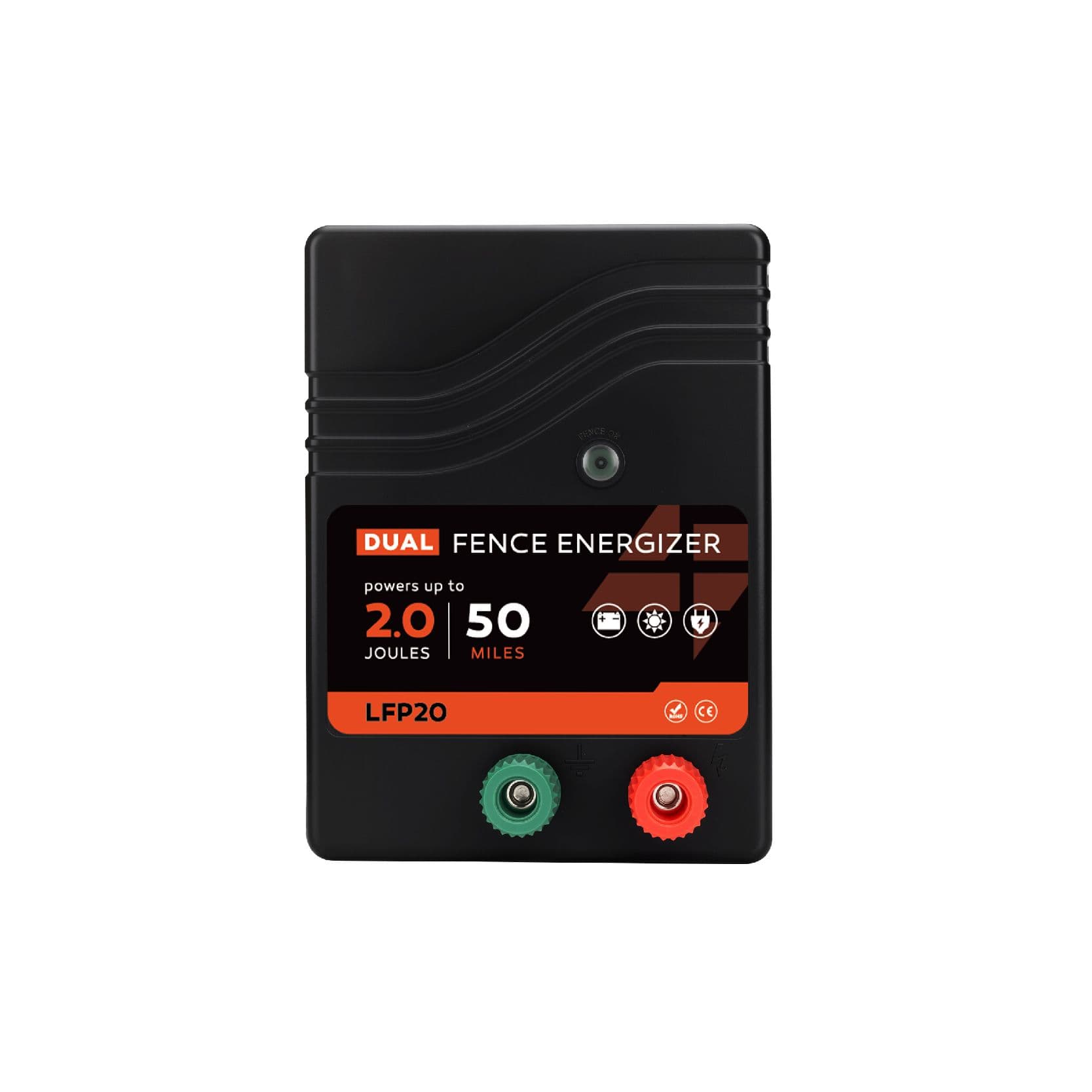

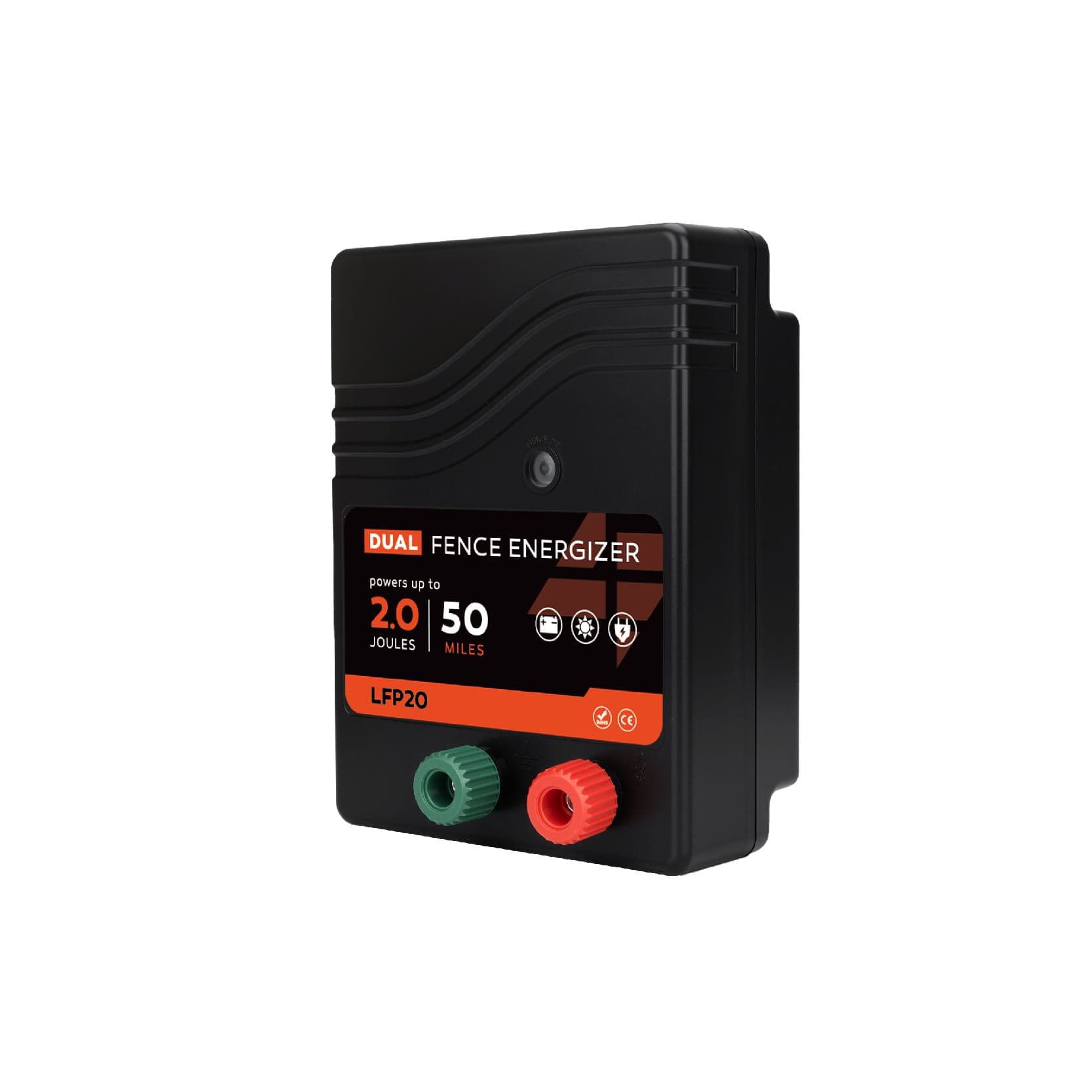

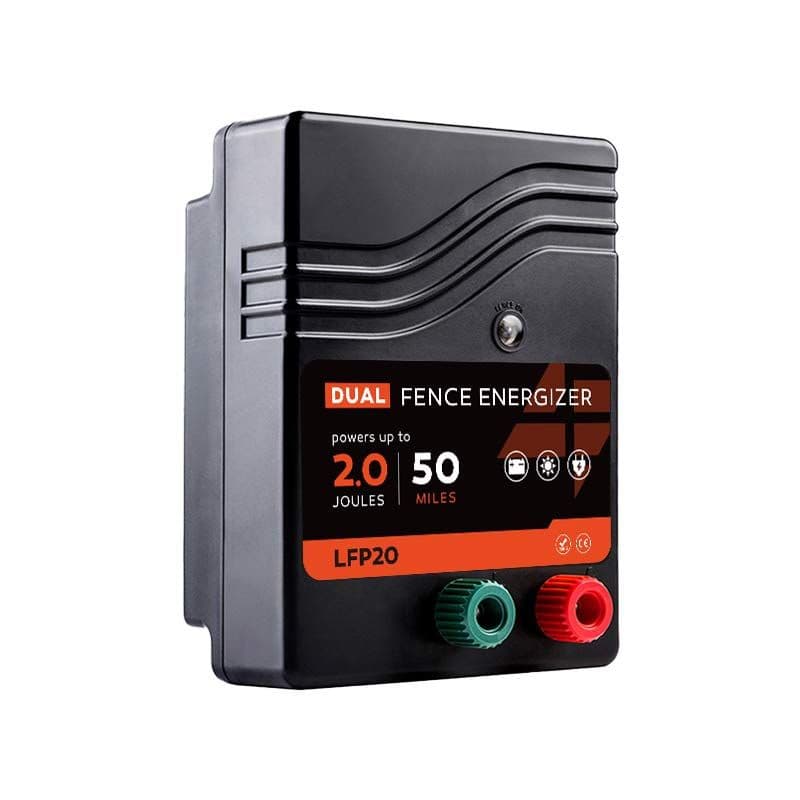

The LFP20 is ideal for most smaller farms. It is safe for all kinds of livestock including the pets and horses. This is one of our most popular energizers for smaller operations.
Warranty information 1-year Warranty
Technical Specifications
Distance powers: 50 miles
Distance powers: 165 Acres
Consumption: 400 mA
Input Voltage:12V/110V-240V
Maximum stored energy: 2.7 Joules
Maximum output energy: 2 Joules
Output Voltage @ 500 Ω:6000 V

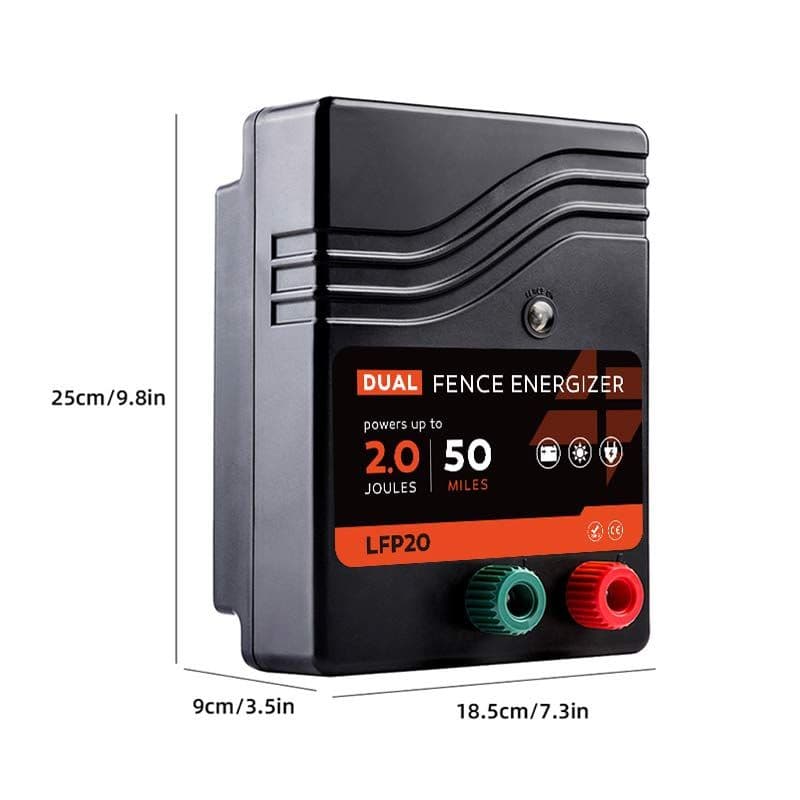

Weight: 1.76KG

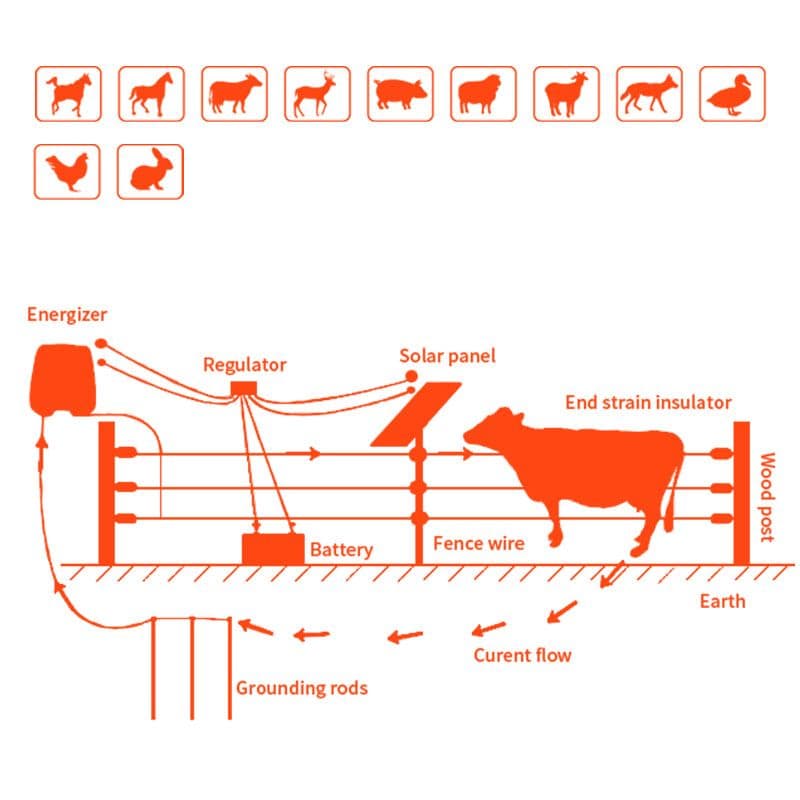

Watch this video to see how you can install the LFP20!
Models | Unit | LFP5 | LFP10 | LFP20 | LFP30 |
|---|---|---|---|---|---|
| 15miles/ | 30miles/ | 50miles/ | 65miles/ | |
Power Supply | 12V battery or 110-240V power adapter supplied | ||||
Current consunmption | mA | 200 | 230 | 400 | 420 |
Out put voltage | kv max | 11.2 | 13 | 10.7 | 10.4 |
Out put | J | up to 0.5 | up to 1 | up to 2 | up to 3 |
Stored energy | J | up to 0.7 | up to 1.3 | up to 2.7 | up to 4.6 |
