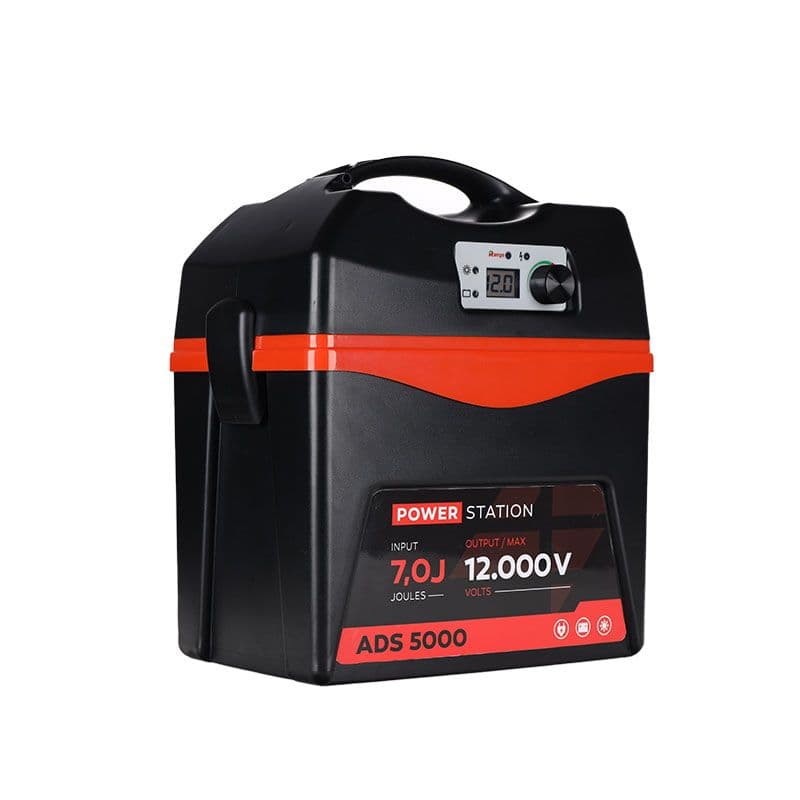

Any power source. Anywhere.

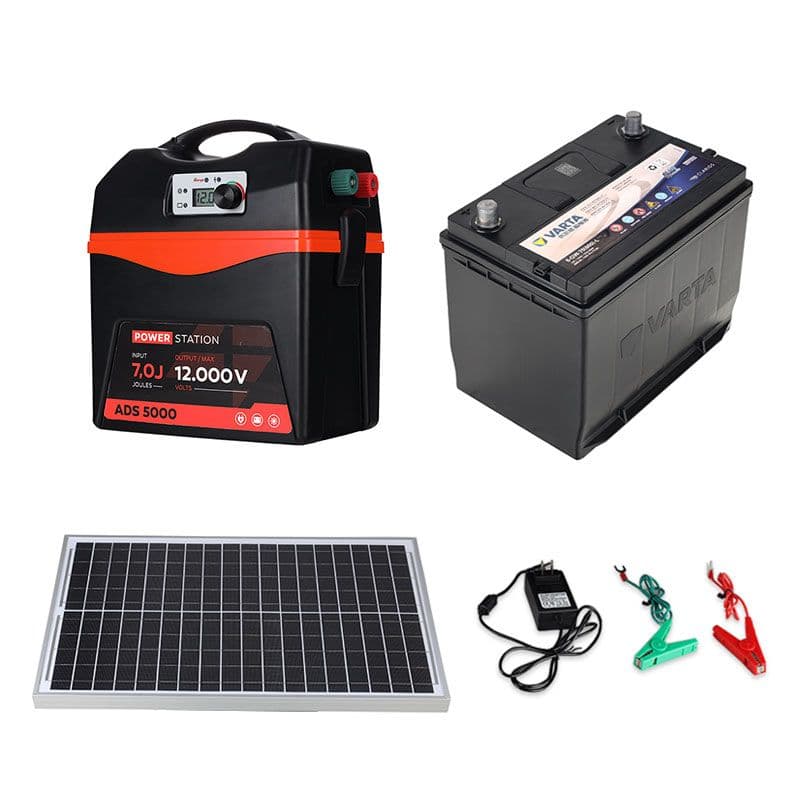

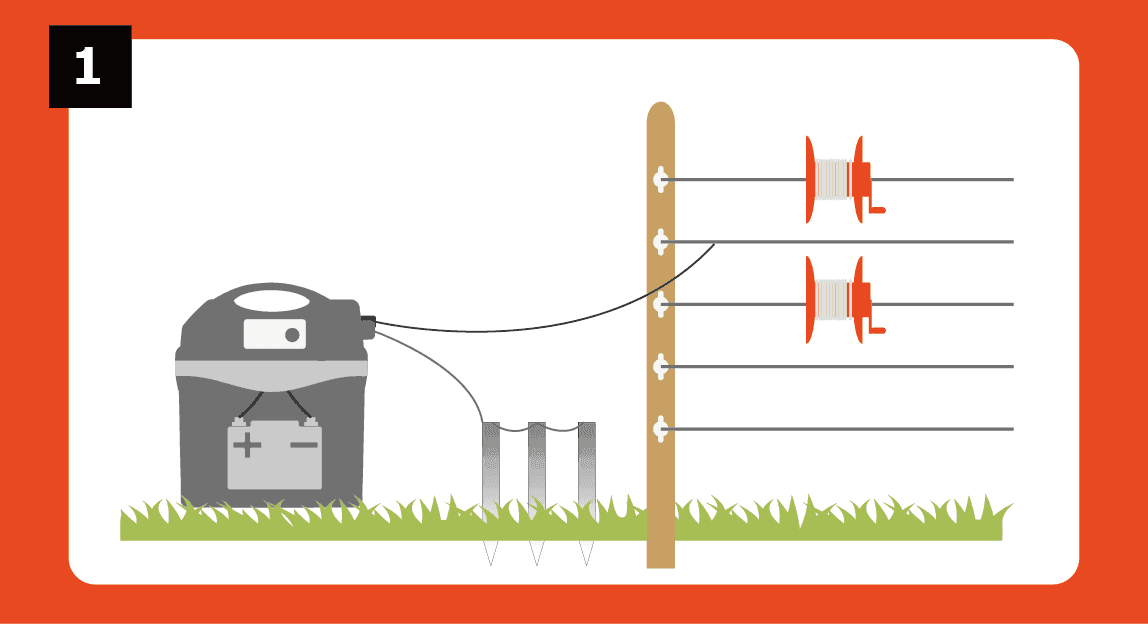

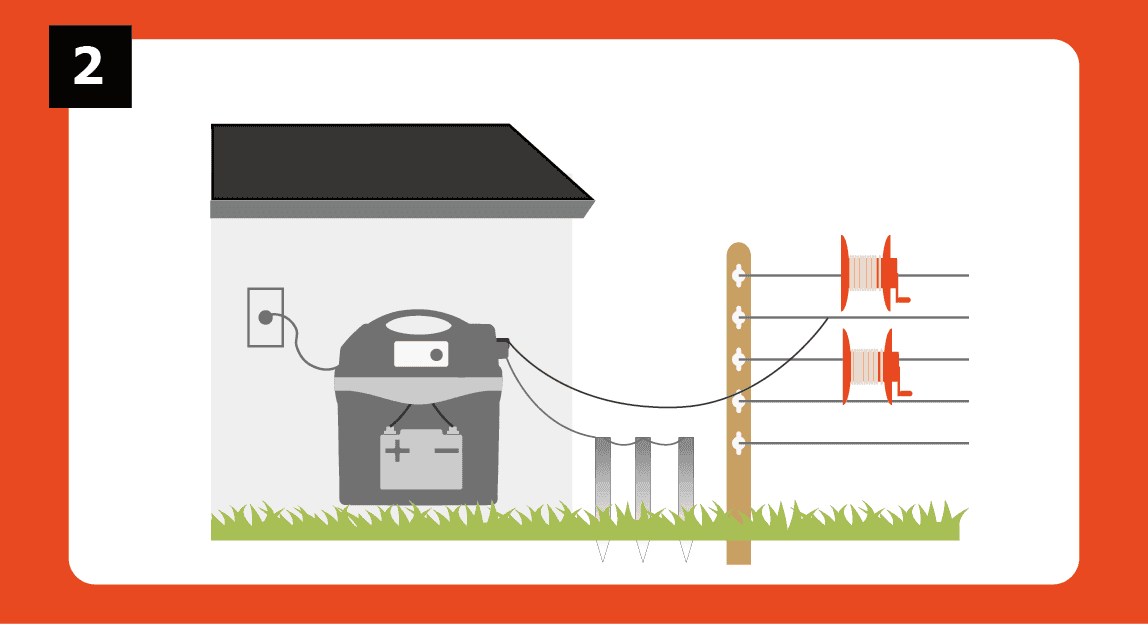

Power Supply: AC 240V/DC 12V battery /solar panel, providing convenient, versatile livestock control.
Warranty information
1 year Warranty
Technical Specifications
Consumption: 0.35-0.4 A / hour
Voltage Vacuum: 12000 volts
Delivered power vacuum: 7 joules
Power output at 500 ohms: 5 joules
Effective length: 100 km
Power Source Battery: DC 12V/75AH (Not include)
Battery size:285*200*220mm

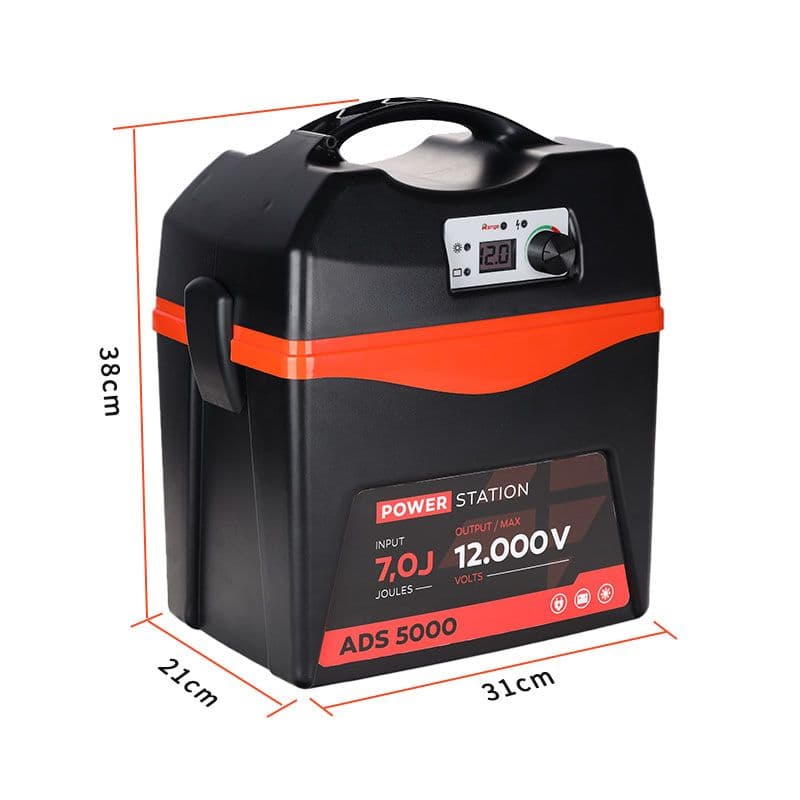

Plastic case. Dimensions: 310*210*380 mm
Physical details: Weight: 2.55 KG

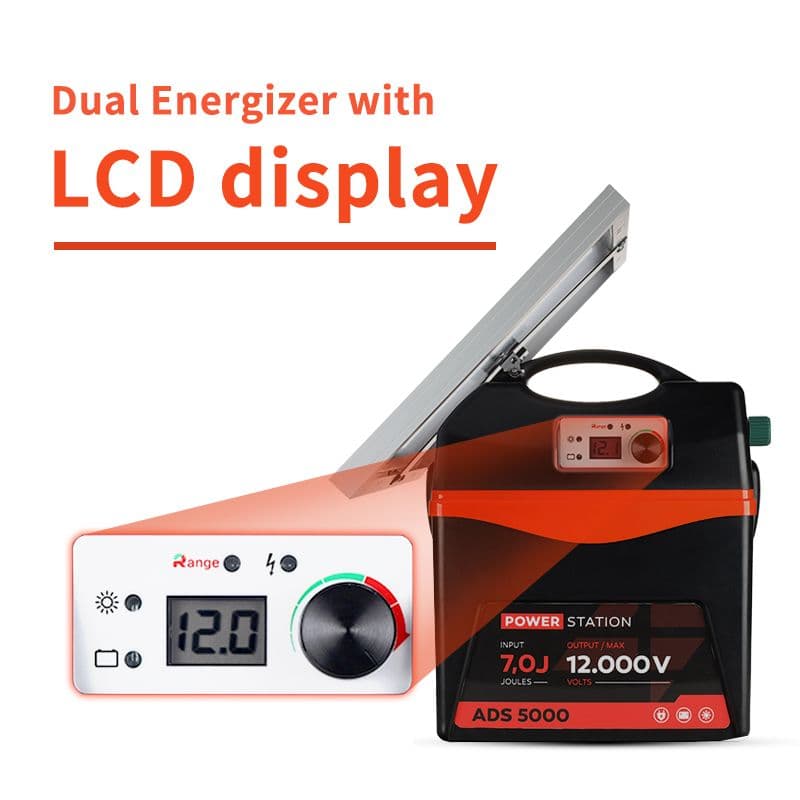

LCD display to monitor device,5KV-12KV voltage modes can be adjusted

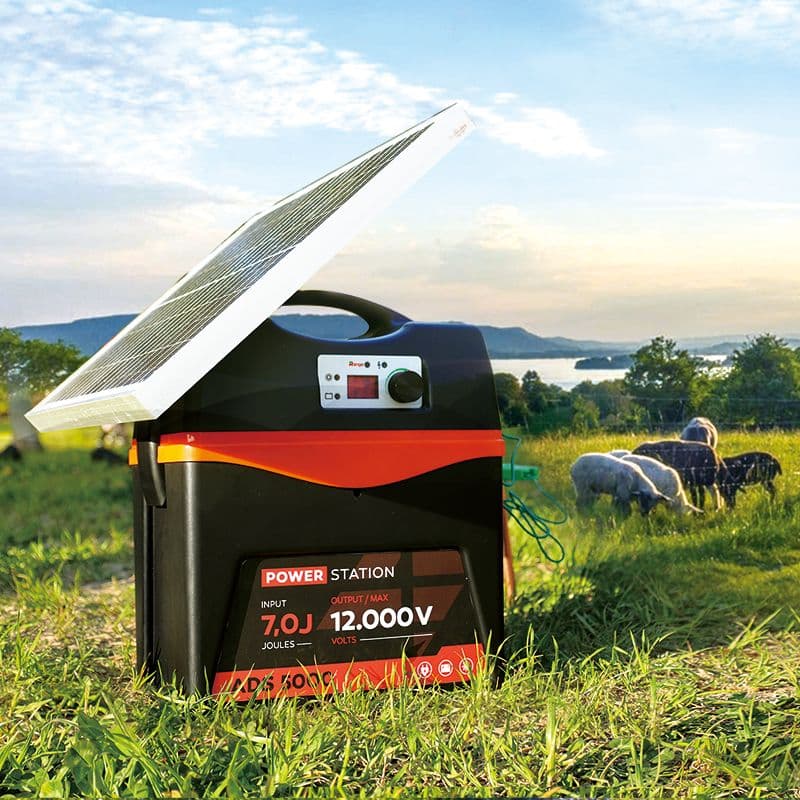

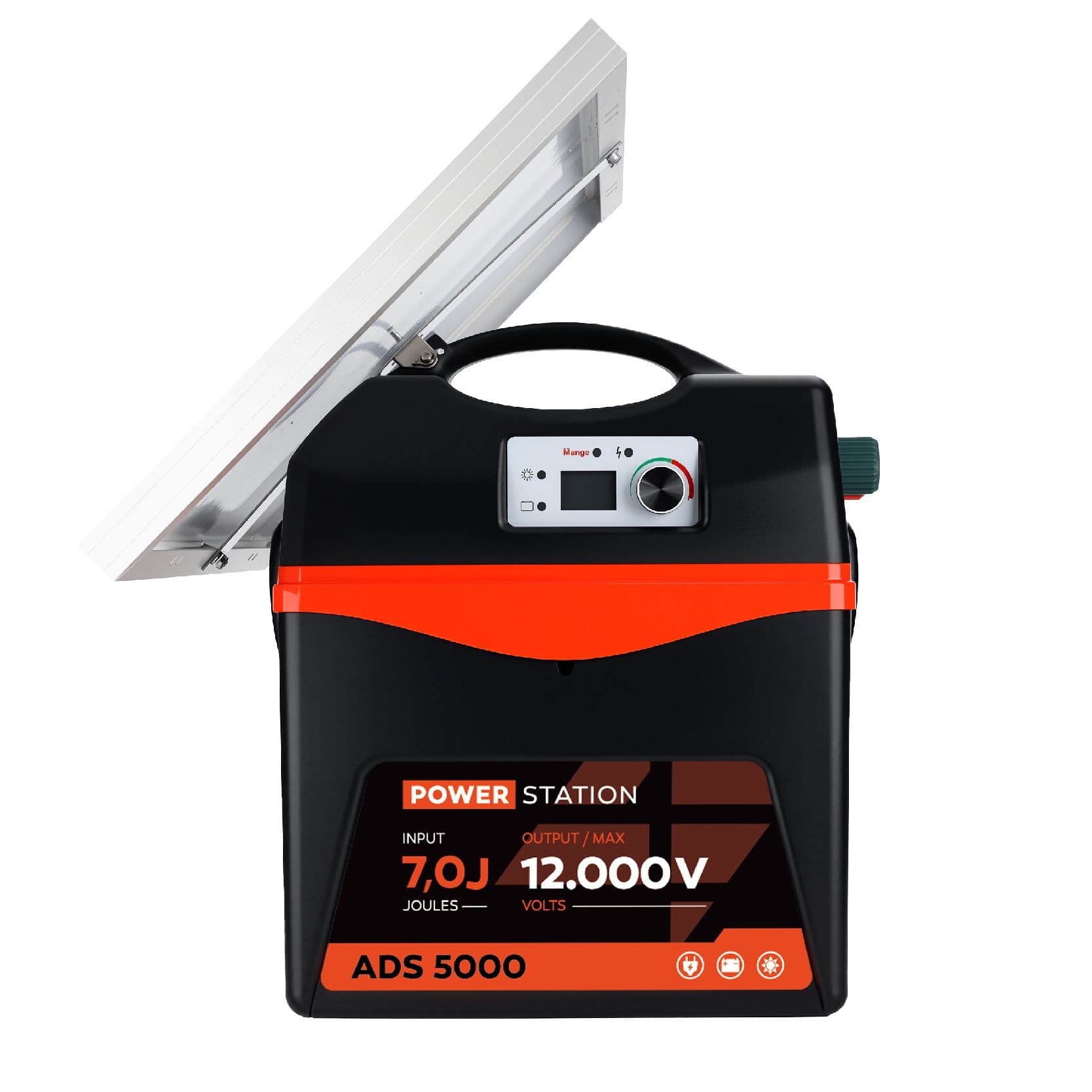

Watch this video to see how you can install the ADS5000 using a solar panel setup!
here is how you benefit from our energizer:

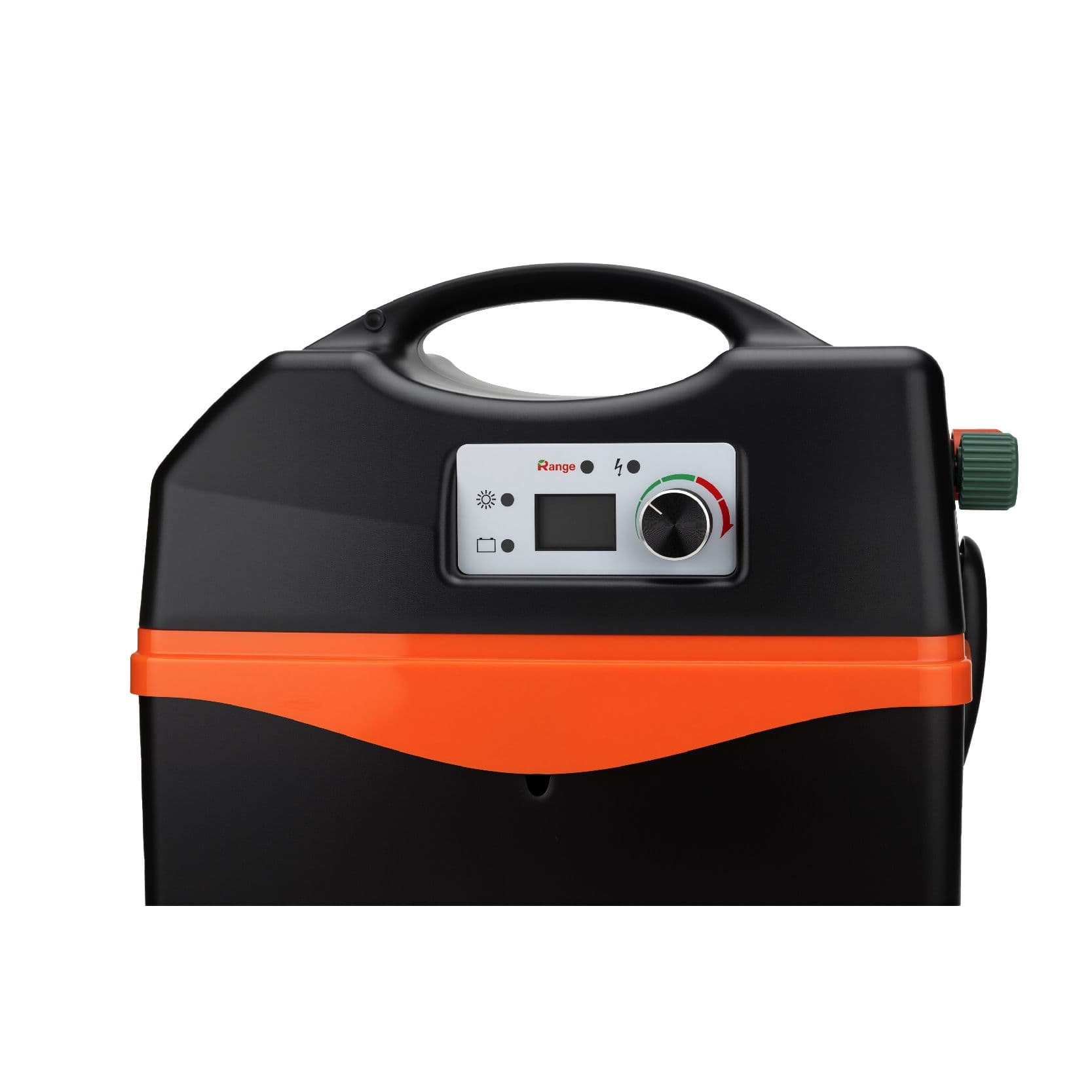

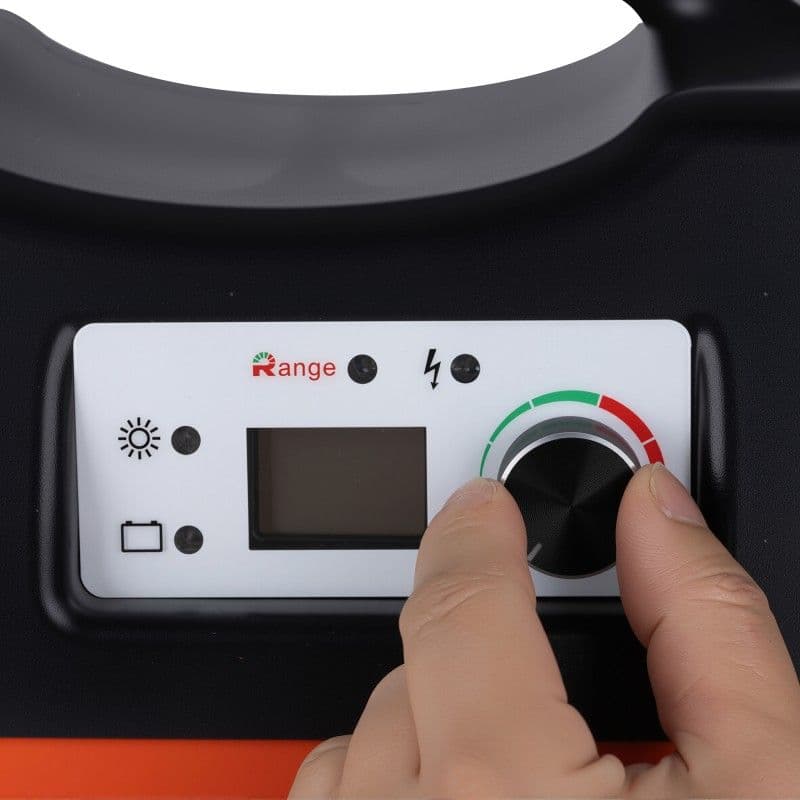

Backlit and easy to read, makesadjusting the settings easy.
Press operating knob for 1 sec,The battery indicator light is on Press operating knob for 3 sec,the display shows OFF.
Power consumption adapts automati-cally to the requirements of the fence.
The manual controller (1-21) is infnitelyvariable. Adjustable output voltage.
Support 1 year warranty. If you have any problems or questions, our own repair center and customer service team are at your service.

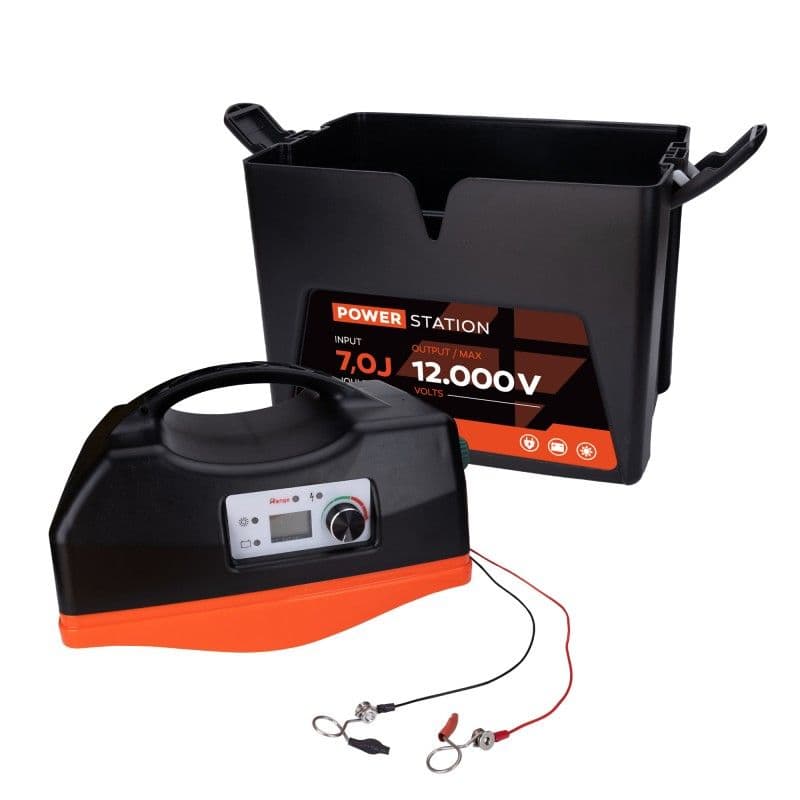

Large battery compartment 280*188*235mm

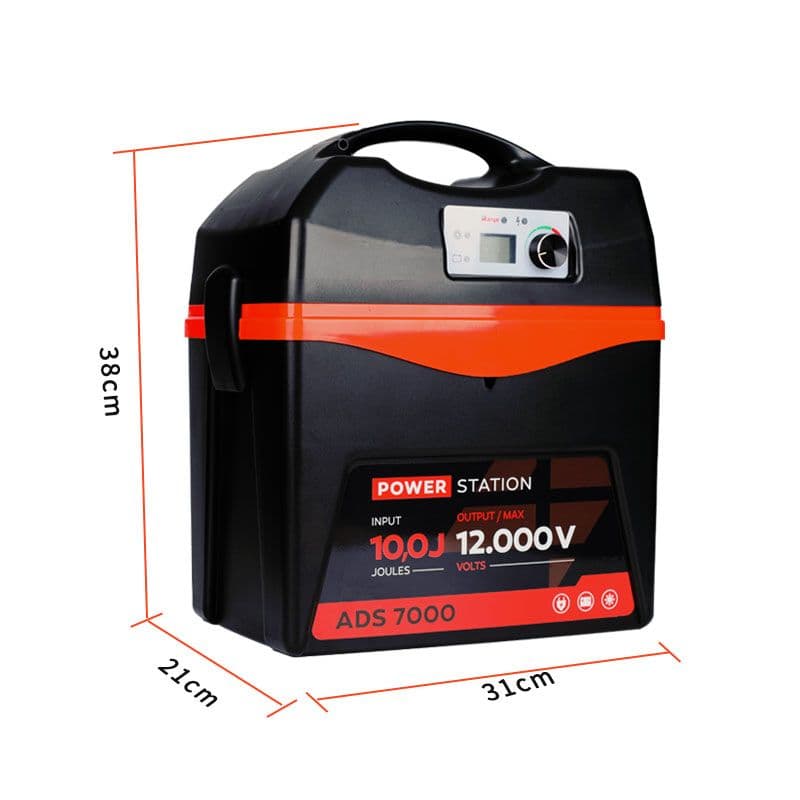

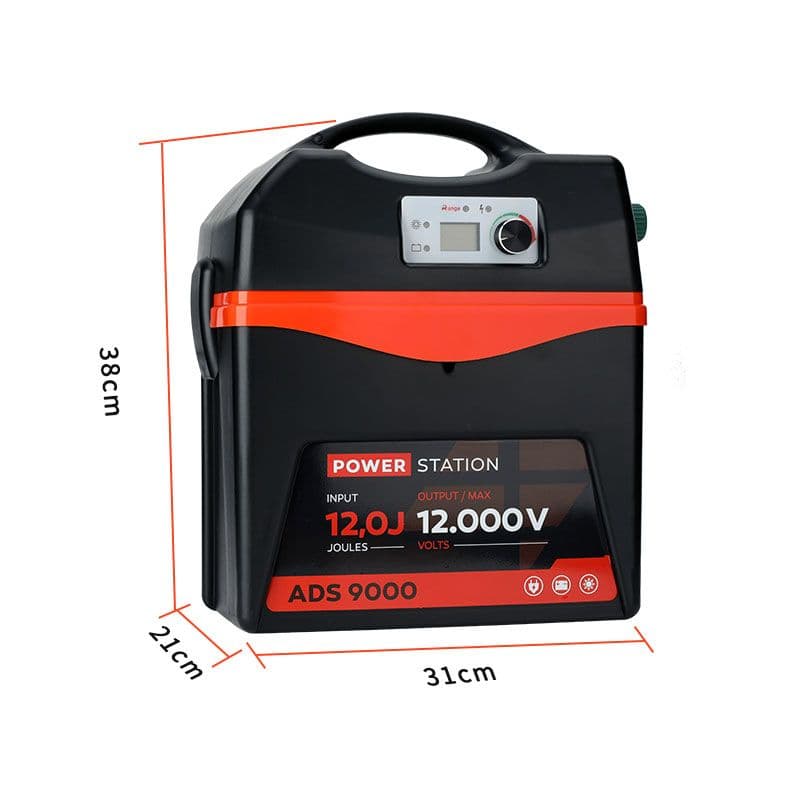

Models | Unit | ADS5000 | ADS7000 | ADS9000 |
|---|---|---|---|---|
Power output at 500 ohms | J | 5 | 7 | 9 |
Delivered power vacuum | J | 7 | 10 | 12 |
Effective length | KM | 100 | 135 | 165 |
Voltage Vacuum | 12 | 12.4 | ||
Waterproof Rating | IP65 Outdoor Use | |||
Operating Temperture | ℃ | 0-40 | 0-40 | 0-40 |
